Heat Treatment Fixture

Product Name: Heat Treatment Fixture

Material: 1.4849 Dimensions: 1500*900*880 mm
Single Weight: 466kg
Manufacturing Process: Precision Casting

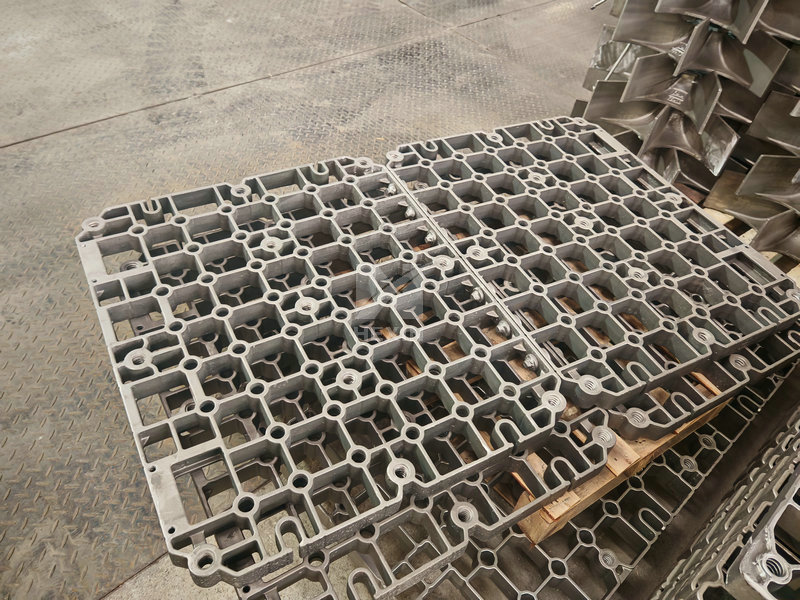

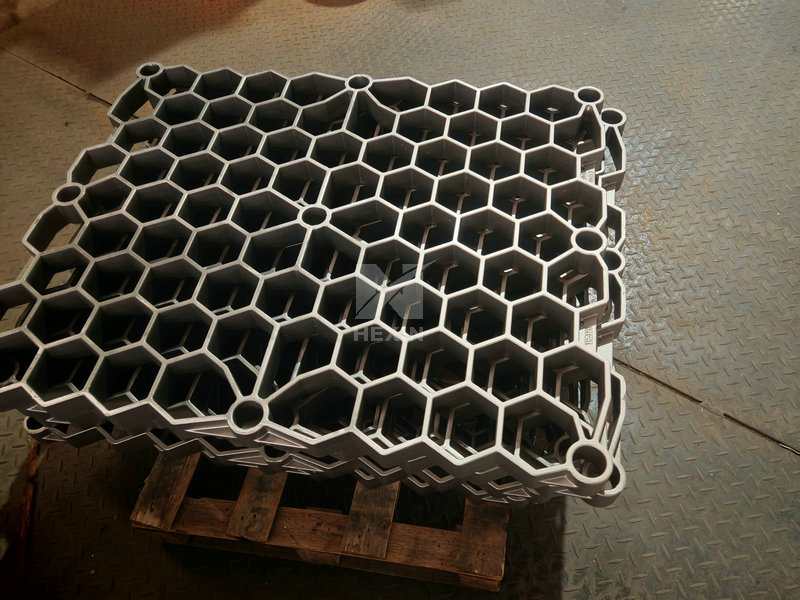

The image shows a recently completed heat treatment fixture, measuring 1500*900*880 mm.

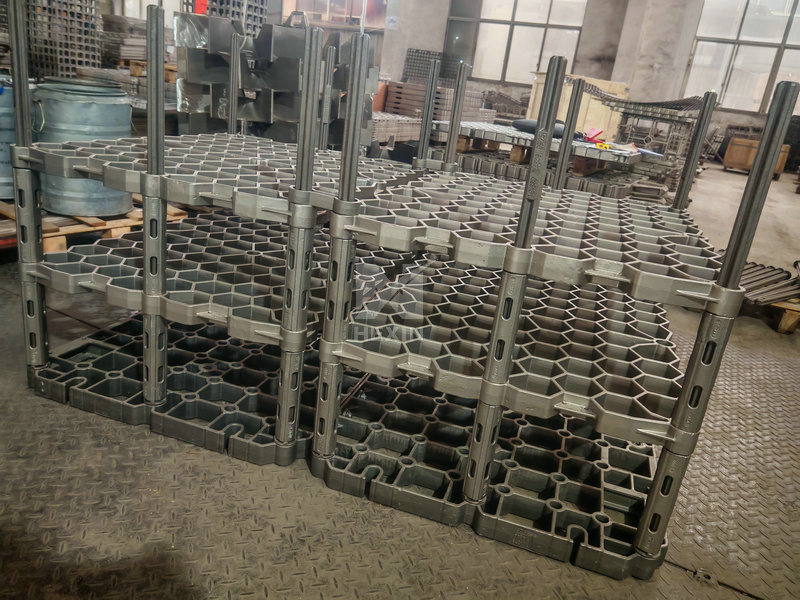

The number of stacking layers and the height of each layer depend on the number of workpieces being heat treated.
Made of 1.4849 nitrile steel using silica sol precision casting, this heat treatment fixture comprises components such as trays, grates, columns, and spacers.
Precision casting of this fixture offers advantages such as dimensional accuracy, high temperature resistance, resistance to deformation, and direct installation.

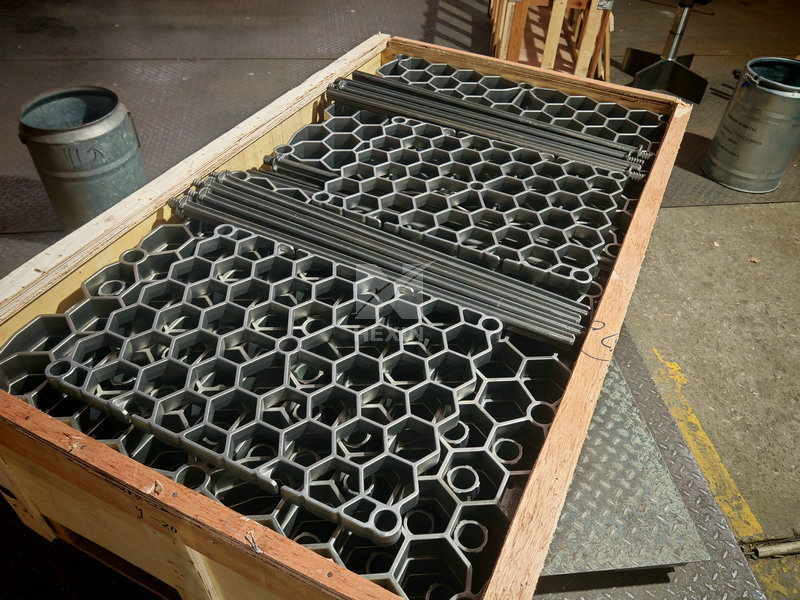

This batch of heat treatment fixtures has passed quality inspection and has been packaged and shipped.
